Israel Insurance Association (R.A)

Modern Loss Reserving Methods in Long Tail Lines

Based on E. Baranoff, P. Brockett & Y. Kahane: Risk Management for Enterprises and Individuals, Flat World knowledge, NY. 2009 Ch.7



 Presentation at the Israel Actuarial Association meeting 29-6-15

There are many reasons why traditional actuarial methods, based on intuitive concepts, are still in common use, especially in long tail lines, despite their apparent deficiencies. It must be understood that these methods are often unable to extract ALL the information embedded in the data base, and sometimes even invent "information" that does not exist in the data base!


Over the last 3-4 decades new powerful actuarial methods were developed, but to my great disappointment, are only slowly penetrating the market. The new regulation, calling for the establishment of reserves with statistically determined safety margins, can only be applied with the use of the new methods.


Over the years we invited several actuaries, and especially Ben Zehnwirth, to talk about loss reserving but some colleagues felt that the basics should be revised again. Personally, over the last 4 decades I have talked at the IAI several times about these issues, and did some work with some of you. The last time was about 6 years ago, when I gave a 10 minutes introduction before Prof. Ben Zehnwirth lecture. In this short presentation I will try to survey the basic ideas and concepts, and show the theoretical and practical issues. I am making this presentation knowing that some of you have already very advanced knowledge of the area, but I hope that I will still be able to refresh some concepts, and hopefully even illuminate new points.


The actuarial estimation in loss reserving is based on data of past claim payments. The data are typically presented in the form of a triangle, where each row represents the accident (or underwriting) period and each column represents the development period. Table 1 represents a hypothetical claims triangle. For example, the payments for 2013 are presented as follows: $13 million paid in 2013 for development year 0, another $60 million paid in development year 1, (i.e., 2014 = [2013+1]), and another $64 million paid during 2015 for development year 2). Note, that each diagonal represents payments made during a particular calendar period. For example, the last diagonal represents payment made during 2015.

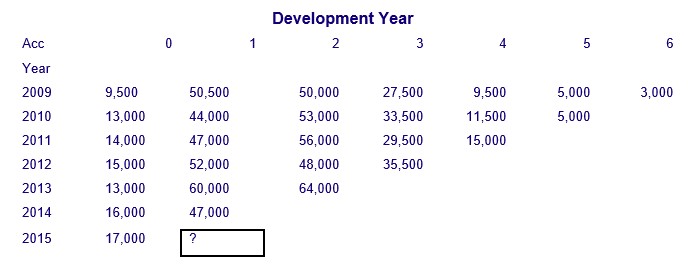

Table 1 A Hypothetical Loss Triangle: Claim Payments by Accident and Development Years ($ Thousand)




The actuarial analysis has to project how losses will be developed into the future based on their past development. The loss reserve is the estimate of all the payments that will be made in the future and is still unknown. In other words, the role of the actuary is to estimate all the figures that will fill the blank lower right part of the table. The actuary has to "square the triangle." The table ends at development year 6, but the payments may continue beyond that point. Therefore, the actuary should also forecast beyond the known horizon (beyond development year 6 in our table), so the role is to "rectanglize the triangle."


The actuary may use a great variety of triangles in preparing the forecast: the data could be arranged by months, quarters, or years. The data could be in current figure or in cumulative figures. The figures could be in nominal or in indexed values. The data could represent numbers: the number of reported claims, the number of settled claims, the number of still pending claims, the number of closed claims, etc. The figures could represent claim payments such as current payments, payments for claims that were closed, incurred claim figures (i.e. the actual payments plus the case estimate), indexed figures, average claim figures, and so forth.


All actuarial techniques seek to identify a hidden pattern in the triangle, and to use it to perform the forecast. Some common techniques are quite intuitive and are concerned with identifying relationships between the payments made across consecutive developing years. Let us demonstrate it on Table 1 by trying to estimate the expected payments for accident year 2015 during 2016 (the cell with the question mark). We can try doing so by finding a ratio of the payments in development year 1 to the payments in development year 0. We have information for accident years 2009 through 2014. The sum of payments made for these years during development year 1 is $300,500 and the sum of payments made during development year 0 is $80,500. The ratio between these sums is 3.73. We multiply this ratio by the $17,000 figure for year 2015, which gives an estimate of $63,410 in payments that will be made for accident year 2015 during development year 1 (i.e. during 2016). Note that there are other ways to calculate the ratios: instead of using the ratio between sums, we could have calculated for each accident year the ratio between development year 1 and development year 0, then calculated the average ratio for all years. This would give a different multiplying factor, resulting in a different forecast.


In a similar way, we can calculate factors for moving from any other development period to the next one (a set of factors to be used for moving from each column to the following one). Using these factors, we can fill all other blank cells in Table 1. Note that the figure of $63,410 that we inserted as the estimate for accident year 2015 during development year 1 is included in estimating the next figure in the table. In other words, we created a recursive model, where the outcome of one step is used in estimating the outcome of the next step. We have created a sort of "chain ladder," as these forecasting methods are often referred to.


In the above example, we used ratios to move from one cell to the next one. But this forecasting method is only one of many we could have utilized. For example, we could easily create an additive model rather than a multiplicative model (based on ratios). We can calculate the average difference between columns and use it to climb from one cell to the missing cell on its right. For example, the average difference between the payments for development year 1 and development year 0 is $36,667 (calculated only for the figures for which we have data on both development years 0 and 1, or 2009 through 2014). Therefore, our alternative estimate for the missing figure in Table 1, the payments that are expected for accident year 2015 during 2016, is $53,667 ($17,000 plus $36,667). Quite a different estimate than the one we obtained earlier!


We can create more complicated models, and the traditional actuarial literature is full of them. The common feature of the above examples is that they are estimating the set of development period factors. However, there could also be a set of "accident period factors" to account for the possibility that the portfolio does not always stay constant between years. In one year, there could have been many policies or accidents, whereas in the other year, there could have been fewer. So, there could be another set of factors to be used when moving between rows (accident periods) in the triangle. Additionally, there could also be a set of calendar year factors to describe the changes made while moving from one diagonal to the other. Such effects may result from a multitude of reasons for example, a legal judgment forcing a policy change, inflation that increases average payments, etc. A forecasting model often incorporates a combination of such factors. In our simple example with a triangle having seven rows, we may calculate six factors in each direction: six for the development periods (column effects), six for the accident periods (row effects), and six for the diagonals (calendar, or payment year effects). The analysis of such a simple triangle may include eighteen factors (or parameters). A larger triangle (which is the common case in practice) where many periods (months, quarters, and years) are used involves the estimation of too many parameters, but simpler models with a much smaller number of factors can be used (see below).


Although the above methods are very appealing intuitively, and are still commonly used for loss reserving, they all suffer from major drawbacks, and are not ideal for use. Let us summarize some of the major deficiencies:


  •       The use of factors in all three directions (accident year, development year, and payment year) may lead to contradictions. We have the freedom to determine any two directions, but the third is determined automatically by the first two.
  •      There is often a need to forecast "beyond the horizon" that is, to estimate what will be paid in the development years beyond year six in our example. The various chain ladder models cannot do this.
  •       We can always find a mathematical formula that will describe all the data points, but it will lack good predictive power. At the next period, we get new data and a larger triangle. The additional new pieces of information will often cause us to use a completely different set of factors including those relating to previous periods. The need to change all the factors is problematic, as it indicates instability of the model and lack of predictive power. This happens due to over-parameterization (a very crucial point that deserves a more detailed explanation, as provided below).
  •       There are no statistical tests for the validity of the factors. Thus, it is impossible to understand which parameters (factors) are statistically significant. To illustrate, it is clear that a factor (parameter) based on a ratio between only two data points (for example, a development factor for the sixth year, which will be based on the two figures in the extreme right corner of the Table 1 triangle) is naturally less reliable, although it may drastically affect the entire forecast.
  •      The use of simple ratios to create the factors may be unjustified because the relationships between two cells could be more complicated. For example, it could be that a neighboring cell is obtained by examining the first cell, adding a constant, and then multiplying by a ratio. Studies have shown that most loss reserves calculated with chain ladder models are suffering from this problem.
  •       Chain ladder methods create a deterministic figure for the loss reserves. We have no idea as to how reliable it is. It is clear that there is zero probability that the forecast will exactly foretell the exact future figure. But management would appreciate having an idea about the range of possible deviations between the actual figures and the forecast.
  •      The most common techniques are based on triangles with cumulative figures. The advantage of cumulative figures is that they suppress the variability of the claims pattern and create an illusion of stability. However, by taking cumulative rather than non-cumulative figures, we often lose much information, and we may miss important turning points. It is similar to what a gold miner may do by throwing away, rather than keeping, the little gold nuggets which may be found in huge piles of worthless rocks.
  •       Many actuaries are still using triangles of incurred claim figures. The incurred figures are the sum of the actually paid numbers plus the estimates of future payments supplied by claims department personnel. The resulting actuarial factors from such triangles are strongly influenced by the changes made by the claims department from one period to the other. Such changes should not be included in forecasting future trends.


There are modern actuarial techniques based on sophisticated statistical tools that could be used for giving better forecasts while using the same loss triangles[1]. Let us see how this works, without engaging in a complicated statistical discussion. The purpose of the discussion is to increase the understanding of the principles. The analysis has to be done by the actuaries, since they are better equipped with the needed mathematical and statistical tools.


A good model is evaluated by its simplicity and generality. Having a complex model with many parameters makes it complicated and less general. The chain ladder models that were discussed above suffer from this over-parameterization problem, and the alternative models that are explained below overcome this difficulty.


Let us start by simply displaying the data of Table 1 in a graphical form in Figure 2. The green dots describe the original data points (the paid claims on the vertical axis and the development years on the horizontal axis). To show the general pattern, we added a line that represents the averages for each development year. We see that claim payments in this line of business tend to increase, reach a peak after a few years, then decline slowly over time, and have a narrow "tail" (that is, small amounts are to be paid in the far future).



Figure 2:  Paid Claims ($ Thousands) by Development Year


                                                    Development Year


  We can immediately see that the entire claims triangle can be analyzed in a completely different way: by fitting a curve through the points. One of these tools to enable this could be regression analysis. Such a tool can give us a better understanding of the hidden pattern than does the chain ladder method. We see that the particular curve in our case is non-linear, meaning that we need more than two parameters to describe it mathematically. Four parameters will probably suffice to give a mathematical function that will describe the pattern of Figure 2. The use of such methods can reach a level of sophistication that goes beyond the scope of this presentation. It is sufficient to say that we can get an excellent mathematical description of the pattern with the use of only four to six parameters (factors). This can be measured by a variety of statistical indicators. The coefficient of correlation for such a mathematical formula is above 95 percent, and the parameters are statistically significant.


Such an approach is simpler and more general than any chain ladder model. It can be used to forecast beyond the horizon, it can be statistically tested and validated, and it can give a good idea about the level of error that may be expected. When a model is based on a few parameters only, it becomes more "tolerant" to deviations: it is clear that the next period payment will differ from the forecast, but it will not force us to change the model. From the actuary's point of view, claim payments are stochastic variables and should never be regarded as a deterministic process, so why use a deterministic chain ladder analysis?


It is highly recommended, and actually essential, to base the analysis on a non-cumulative claims triangle. The statistical analysis does not offer good tools for cumulative figures; we do not know their underlying statistical processes, and therefore, we cannot offer good statistical significance tests. The statistical analysis which is based on the current, non-cumulative claim figures is very sensitive, and can easily detect turning points and changing patterns.


One last point should be mentioned. The key to regression analysis is the analysis of the residuals, that is, the differences between the observed claims and the figures that are estimated by the model. The residuals must be spread randomly around the forecasted, modeled, figures. If they are not randomly spread, the model can be improved. In other words, the residuals are the compass that guides the actuary in finding the best model. Traditional actuarial analyses based on chain ladder models regard variability as a corrupt element and strive to get rid of the deviations to arrive at a deterministic forecast. By doing so actuaries throw away the only real information in the data, and base the analysis on the non-informative part alone! Sometimes the fluctuations are very large, and the insurance company is working in a very uncertain, almost chaotic claims environment. If the actuary finds that this is the case, it will be important information for the managers and should not be hidden or replaced by a deterministic, but meaningless, forecast.


Additional summarizing comments:

1.     The power of residuals

2.     75% safety margins on the retention

3.     The ability to communicate

4.     Accounting and actuarial work

5.     Changing patterns



KAHANE@POST.TAU.AC.IL     054-4557137


[1] The interested reader should seek out publications by Professor B. Zehnwirth, a pioneer of the approach described, in actuarial literature. One of the authors (Y. Kahane) has collaborated with him, and much actuarial work has been done with these tools. The approach is now well accepted around the world. The graph was derived using resources developed by Insureware Pty. (
